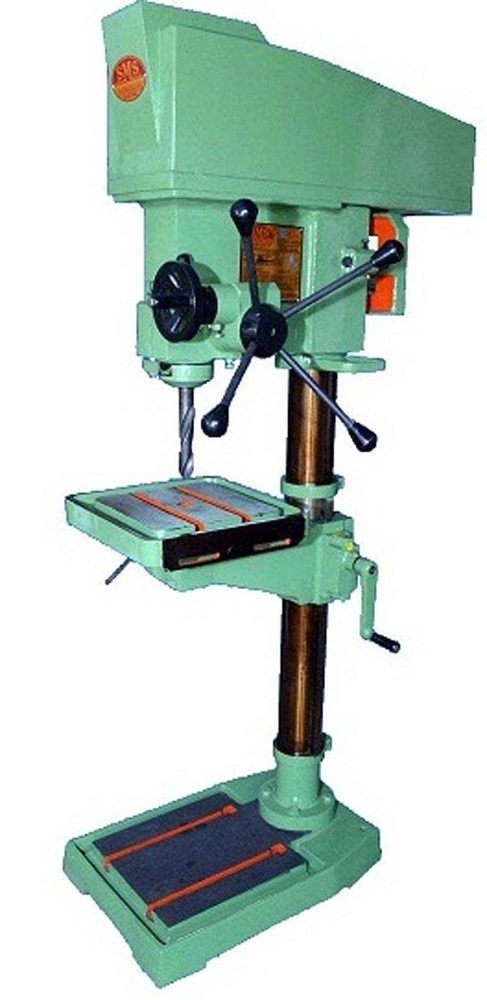

40 MM Auto Feed Pillar Drill Machine

Name: 40 MM Auto Feed Pillar Drill Machine
Brand: SIDDHAPURA MANUFACTURER & SUPPLIERS
Price: 125000 INR
Availability: InStock

Price 125000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

40 MM Auto Feed Pillar Drill Machine Specification

Features
Auto feed system, heavy duty construction, adjustable speed, sturdy base

Dimension (L*W*H)
850 mm x 470 mm x 1900 mm Millimeter (mm)

Frequency
50 Hz Hertz (HZ)

Diameter
40 mm Millimeter (mm)

Table Size
420 mm x 420 mm

Spindle Speed
95-1720 RPM (Variable) approx. RPM

Motor Power
2 HP Horsepower (HP)

Condition
New

Machine Type
Pillar Type Drill Machine

Product Type
Auto Feed Pillar Drill Machine

Material
Cast Iron, Mild Steel

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Manual / Automatic Feed

Voltage
415 V Volt (v)

Power
2 HP Horsepower (HP)

Power Source
Electric

Weight (kg)
380 kg Kilograms (kg)

Color
Green / Blue

Usage & Applications
Industrial drilling operations, fabrication workshops, heavy engineering works

Column Diameter
120 mm

Feed Type
Auto and Manual feed

Spindle Travel
225 mm

Body Type
Heavy Duty Cast Iron Body

Distance Base to Spindle Nose
1120 mm

Number of Speed
8

Drilling Stroke
225 mm

Base Features
Wide ribbed base for maximum stability

Lubrication
Manual

Cooling System
Provision for coolant

Max Distance Spindle Center to Column
320 mm

Base Size
630 mm x 400 mm

Chuck Capacity
Up to 20 mm

Spindle Nose Taper
MT-4

Safety Features
Emergency stop, splash guard

Distance Spindle to Table
535 mm

Main Drive
V-Belt Drive

40 MM Auto Feed Pillar Drill Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Bhavnagar , Gujarat

Supply Ability
1 Unit Per Week

Delivery Time
1 Week

Packaging Details
Plastic Cover, Hard Paper & Wooden Box Packing

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia

Main Domestic Market
All India

Certifications
ISO 9001 : 2008

About 40 MM Auto Feed Pillar Drill Machine

A pillar drill machine also known as a column drill or drill press is a stationary vertically mounted drilling machine that provides precise and accurate drilling for various materials like metal wood and plastic Key features include a heavy base for stability a vertical column supporting the motor and drill head and an adjustable table for positioning the workpiece Pillar drills are designed for high accuracy and repeatability reduced operator fatigue and the ability to handle large or heavy workpieces

How it Works

Mounting

The machine is firmly secured to a floor or workstation using a heavy base for maximum stability

Column

A sturdy column rises from the base housing the motor and the drilling head assembly

Drill Head

The drill head contains the spindle which holds the drill bit and the motor that drives it

Table

An adjustable table is mounted on the column allowing the operator to raise or lower it to the desired height for different workpiece sizes

Drilling

The operator lowers the drill bit into the material with a feed handle while the machines fixed and stable setup ensures accurate and consistent holes

Key Components

Base A heavy stable platform at the bottom of the machine

Column The vertical support structure

Drill Head Contains the motor spindle and feed mechanism

Spindle A rotating shaft that holds the drill bit

Table An adjustable surface for holding the workpiece

Feed Lever Used to lower the drill bit into the material

Advantages

Accuracy and Precision Provides high accuracy and repeatability in drilling operations

Stability The heavy base and column ensure a stable platform for accurate drilling

Reduced Fatigue Operator effort is reduced compared to handheld drills

Versatility Can handle a wide range of materials and large heavy workpieces

Durable Construction for Demanding Tasks

Built with a heavy-duty cast iron body, this pillar drill machine provides maximum stability during operation. Its wide ribbed base and robust column guarantee vibration-free drilling, making it ideal for continuous use in industrial environments. The sturdy design ensures long-term reliability, even under heavy loads.

Versatile Drilling with Precision

Equipped with both auto and manual feed options, this machine accommodates a wide range of steel drilling requirements, up to 40 mm in diameter. The spindle nose taper MT-4 and travel of 225 mm, combined with adjustable speeds, allow users to achieve precise results across different materials and thicknesses.

Enhanced Efficiency and Safety

This drill machine includes vital features such as an emergency stop button, splash guard, and a provision for coolant, all contributing to safe operation. The manual lubrication and easy-to-use control system (automatic or manual feed) further enhance user convenience and operational efficiency.

FAQs of 40 MM Auto Feed Pillar Drill Machine:

Q: How does the auto feed system benefit industrial drilling operations?

A: The auto feed system provides consistent and uniform pressure during drilling, improving accuracy and reducing operator fatigue. This enables faster production and ensures high-quality results, especially for repetitive tasks in industrial settings.

Q: What materials can this 40 MM pillar drill machine handle effectively?

A: Designed for versatility, the machine easily drills through cast iron and mild steel up to a 40 mm diameter, making it suitable for heavy engineering works, fabrication workshops, and general industrial applications.

Q: When should I use the coolant provision during operation?

A: Activating the coolant provision is recommended during prolonged or heavy-duty drilling to prevent overheating, extend tool life, and maintain superior surface finishes on the drilled workpiece.

Q: Where is this drill machine best utilized?

A: This pillar drill is ideal for industrial environments such as fabrication workshops, manufacturing plants, and heavy engineering units where robust and precise drilling capabilities are needed.

Q: What safety features are incorporated into the design?

A: For user protection, the machine is equipped with an emergency stop button and a splash guard to minimize risk during operation. The wide ribbed base and heavy-duty construction further promote safety through enhanced stability.

Q: How do I adjust the spindle speed for different drilling requirements?

A: The machine offers eight variable speed settings, ranging from 95 to 1720 RPM, easily adjustable via the V-belt drive mechanism. This allows the operator to select the optimal speed based on material type and drill bit size.

Q: What maintenance process should be followed for this drill machine?

A: Manual lubrication is required to keep all moving components operating smoothly. Regular cleaning, inspecting safety features, and checking the belt drive ensure reliable performance and longevity of the machine.
