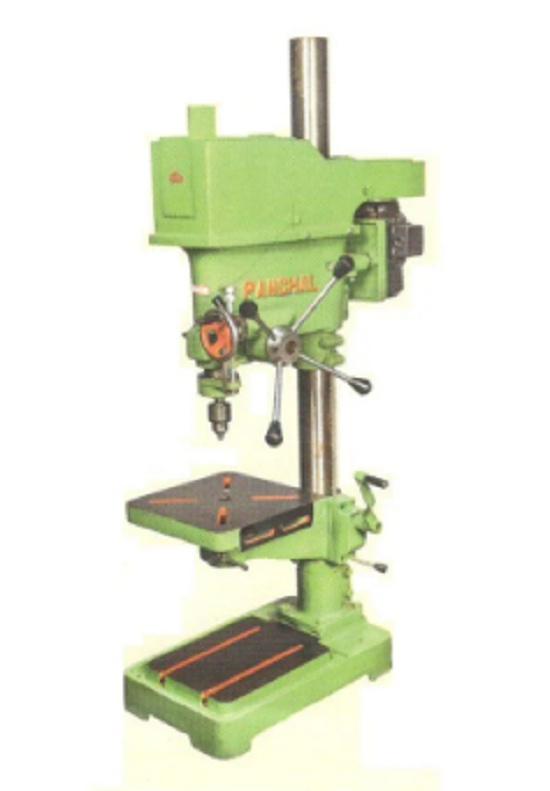

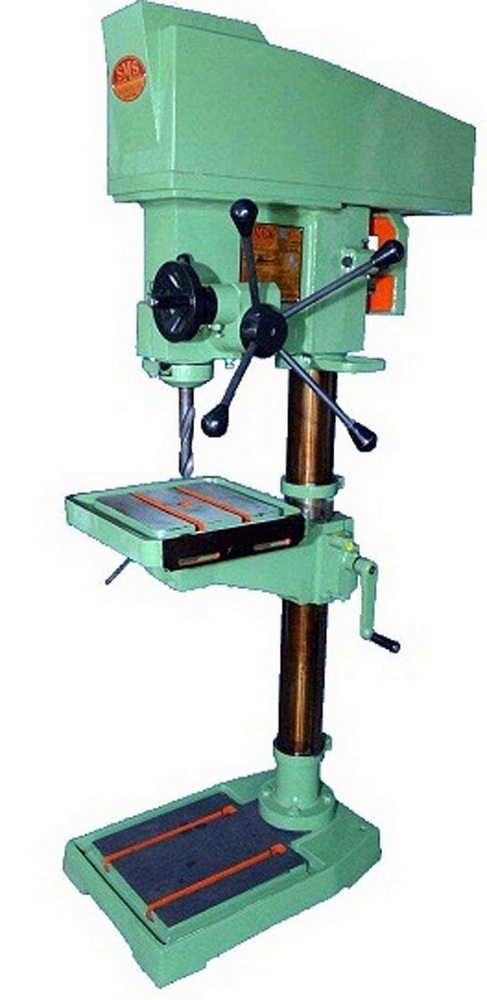

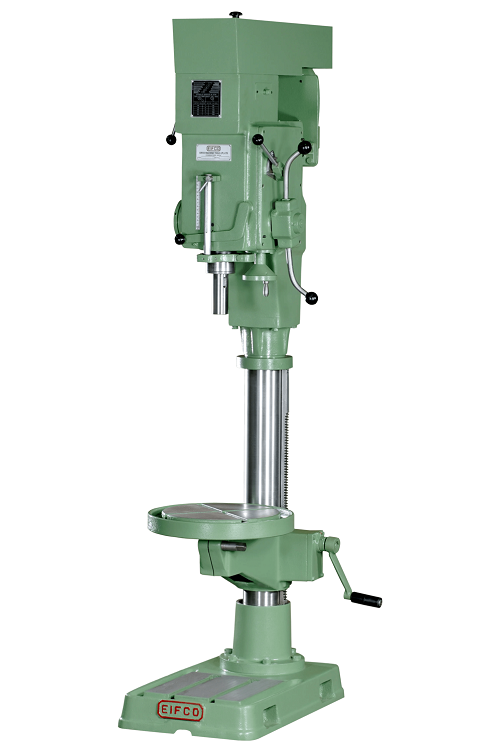

25 Mm Pillar Drill Machine

About 25 Mm Pillar Drill Machine

Specification
Drilling Machine			25 mm
Tapping Machine Capacity			25 mm.
Drilling Capacity			25 mm.
Spindle Travel/Table travel (6 mm.)			150 mm.
Distance Spindle to Column			206 mm.
Distance between chuck to base			950 mm.
Distance between chuck to work table			710 mm.
Size of base Plate-L x B			336 x 336 mm.
Size of Work Table-L x B			550 x 375 mm.
Diameter of Column			99 mm.
V-Belt (Inside)			-
V-Belt for Motor (Outside)			B-46
No. of Spindle Speeds			8
Forwards Speeds Range			105 to 2651
Reverse Speeds Range			105 to 2651
Motor Single phase or three phase			1 H.P.
			1440 R.P.M.
gear Motor H.P. & R.P.M.(SinglePhase)			-
Overall Height			1606 mm.
Overall Width			550 mm.
Overall front to back			600 mm.
Weight approx			200 Kg.

A pillar drill machine also known as a column drill or drill press is a stationary vertically mounted drilling machine that provides precise and accurate drilling for various materials like metal wood and plastic Key features include a heavy base for stability a vertical column supporting the motor and drill head and an adjustable table for positioning the workpiece Pillar drills are designed for high accuracy and repeatability reduced operator fatigue and the ability to handle large or heavy workpieces

How it Works

Mounting

The machine is firmly secured to a floor or workstation using a heavy base for maximum stability

Column

A sturdy column rises from the base housing the motor and the drilling head assembly

Drill Head

The drill head contains the spindle which holds the drill bit and the motor that drives it

Table

An adjustable table is mounted on the column allowing the operator to raise or lower it to the desired height for different workpiece sizes

Drilling

The operator lowers the drill bit into the material with a feed handle while the machines fixed and stable setup ensures accurate and consistent holes

Key Components

Base A heavy stable platform at the bottom of the machine

Column The vertical support structure

Drill Head Contains the motor spindle and feed mechanism

Spindle A rotating shaft that holds the drill bit

Table An adjustable surface for holding the workpiece

Feed Lever Used to lower the drill bit into the material

Advantages

Accuracy and Precision Provides high accuracy and repeatability in drilling operations

Stability The heavy base and column ensure a stable platform for accurate drilling

Reduced Fatigue Operator effort is reduced compared to handheld drills

Versatility Can handle a wide range of materials and large heavy workpieces

Versatile Drilling Capacity

Capable of drilling up to 25 mm in diameter and offering spindle travel of 150 mm, this pillar drill is suitable for a wide range of industrial and workshop tasks. The adjustable speed settings and tilting, rotating table allow for customized operations and improved accuracy.


Built for Longevity and Stability

With its robust cast iron body and sturdy pillar design, the machine ensures high stability and minimal vibration during use. Its low maintenance features and reliable electric motor make it a cost-effective choice for continuous operation.


Easy and Efficient Operation

Manual lever controls permit straightforward handling, even for less-experienced operators. The machines simple mechanical construction, combined with multi-speed spindle capability, delivers efficient drilling with convenience and safety.
